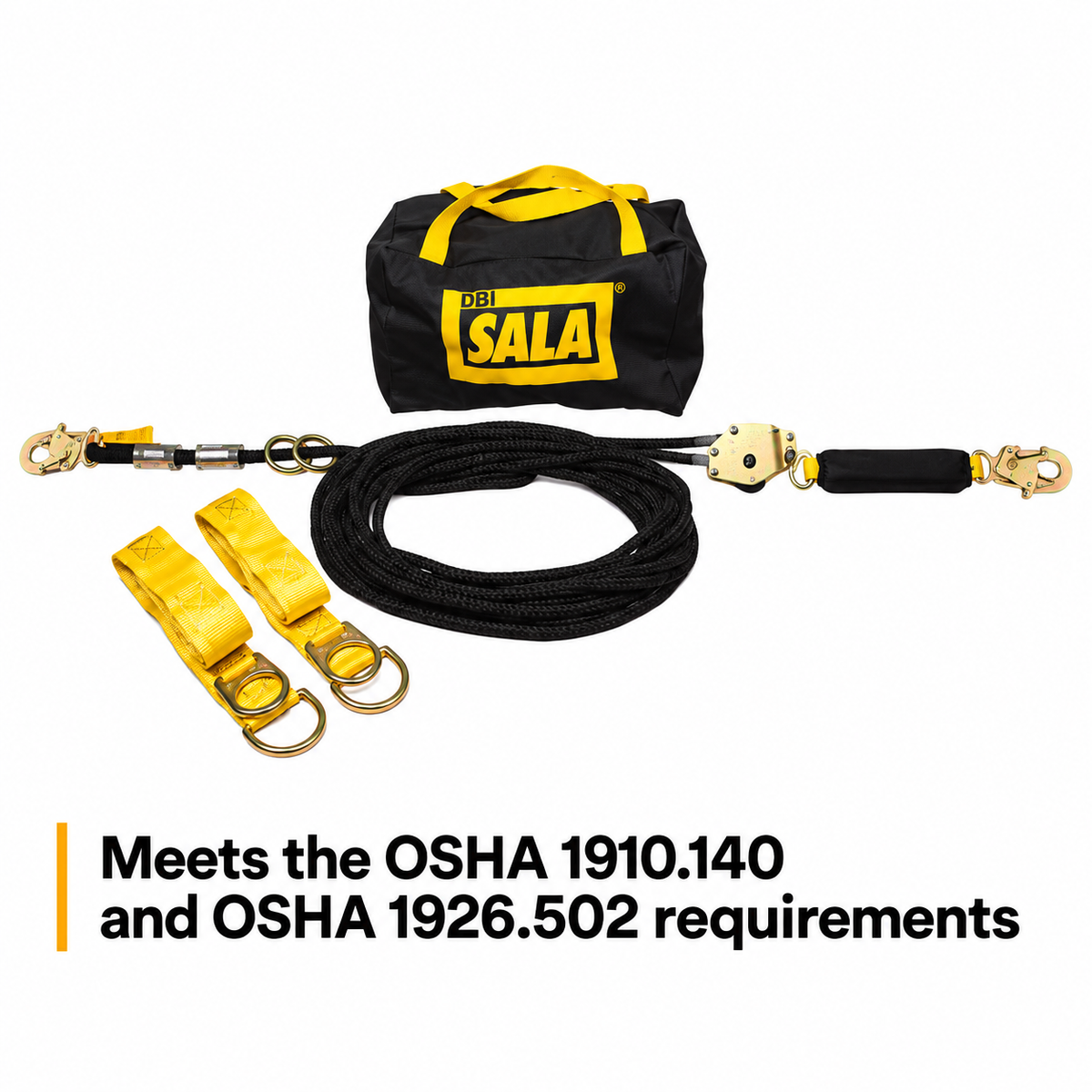

3M DBI-SALA Sayfline™ Synthetic Horizontal Lifeline System 40'

Understanding OSHA horizontal lifeline requirements is essential when selecting reliable fall protection systems for construction, industrial maintenance, roofing, and other elevated work environments. Horizontal lifeline systems provide a connection point for compatible fall arrest equipment, helping workers maintain continuous protection and freedom of movement while working at height.

Explore horizontal lifelines designed for demanding industrial applications, with options suited to different working environments, anchorage configurations, and worker capacities.

Horizontal Lifeline Systems for Fall Protection

A horizontal lifeline system consists of a flexible line extending between secure anchor points, allowing compatible personal fall arrest equipment to move along a designated working area. These systems are especially useful when workers need to travel horizontally across structures where individual fixed anchor connections may restrict movement.

Unlike vertical lifeline arrangements, a horizontal lifeline supports lateral travel across a defined span. Properly selected equipment can improve mobility while maintaining essential fall safety measures.

Benefits of Horizontal Lifelines

• Freedom of movement: Allows workers to travel across designated elevated work areas while connected to compatible equipment.

• Versatile applications: Suitable for construction, structural steel, roofing, and industrial maintenance when properly designed for the application.

• Fall arrest compatibility: Integrates with approved safety harnesses, connectors, and compatible self-retracting lifelines or lanyards.

• Flexible configurations: Available in temporary and permanent arrangements to accommodate different workplaces and structural requirements.

• Worker protection: Forms part of a complete personal fall arrest system designed to limit the consequences of a fall.

OSHA Horizontal Lifeline Requirements

The Occupational Safety and Health Administration (OSHA) establishes fall protection standards for workplaces throughout the United States.

Under 29 CFR 1926.502(d)(8), horizontal lifelines used in construction must be designed, installed, and used under the supervision of a qualified person as part of a complete personal fall arrest system maintaining a safety factor of at least two.

General industry requirements under 29 CFR 1910.140(c)(11) establish equivalent qualified-person supervision and minimum safety factor provisions.

Anchorage Points and Safety Factor Requirements

Properly evaluated anchorage points are essential to the integrity of horizontal lifeline systems.

For personal fall arrest anchorage, OSHA generally requires one of two approaches:

• An anchorage capable of supporting at least 5,000 pounds (22.2 kN) per attached worker.

• An anchorage designed, installed, and used under the supervision of a qualified person as part of a complete system maintaining a safety factor of at least two.

Horizontal lifeline end-anchor forces depend on factors such as span length, line geometry, tension, and the number of connected workers. Individual anchorage ratings alone do not establish the suitability of a complete horizontal lifeline installation.

A qualified safety professional should evaluate the system against applicable regulations and manufacturer requirements.

Fall Clearance and Deceleration Distance

Adequate fall clearance is critical when evaluating a horizontal lifeline system.

Fall clearance calculations must consider potential free-fall distance, deceleration distance, lifeline deflection, harness movement, worker positioning, and an appropriate safety margin.

For construction personal fall arrest systems, OSHA generally limits free fall to 6 feet and deceleration distance to 3.5 feet. Systems must also prevent workers from contacting a lower level.

Because a horizontal lifeline can deflect under load, available clearance must be assessed for the specific system configuration.

Choosing the Right Horizontal Lifeline System

Selecting appropriate equipment involves more than identifying the length of a lifeline.

Important considerations include:

• Temporary versus permanent installation requirements.

• Compatible anchorage structures and connection equipment.

• Manufacturer-approved span lengths and worker capacity.

• Personal fall arrest system compatibility.

• Available fall clearance beneath the work area.

• Environmental exposure and equipment inspection requirements.

• Applicable OSHA regulations and site-specific rescue planning.

A qualified person must assess the design and intended use of the complete system before installation and operation.

Horizontal Lifeline Frequently Asked Questions

Are horizontal lifeline systems OSHA compliant?

Horizontal lifeline systems can form part of an OSHA-compliant fall protection arrangement when appropriately designed, installed, inspected, and used. Compliance depends on the entire system and workplace application rather than an individual product claim.

Can multiple workers use one horizontal lifeline?

Some systems accommodate multiple workers, but the permitted capacity depends on the manufacturer's specifications and the qualified-person-approved design. Additional workers can increase loads and affect system performance.

What is the difference between a horizontal and vertical lifeline?

A horizontal lifeline allows travel along a horizontal span between anchorage points. A vertical lifeline is typically used for movement along a vertical working path. Each requires appropriate compatible equipment and application-specific fall protection planning.

Do OSHA horizontal lifeline requirements apply in Canada?

OSHA requirements apply to covered workplaces in the United States. Canadian workplaces must follow their applicable provincial or territorial occupational health and safety regulations and relevant CSA standards. Equipment selection and compliance should reflect the jurisdiction where the system will be used.

Shop Horizontal Lifeline Systems

Explore horizontal lifeline equipment for industrial fall protection applications. Compare available configurations, manufacturer specifications, worker capacities, and equipment compatibility to identify products appropriate for your workplace.

Superior Safety Harness supplies fall protection equipment for construction and industrial professionals, helping businesses source dependable safety solutions for demanding work environments.
